Certification : ISO, RoHS
Brand Name : OEM
Place of Origin : China
MOQ : 1 Piece
Price : $1, 300.00/Cases 1-49 Cases
Payment Terms : T/T,PayPal,Negotiable
Packaging Details : Standard Package
Delivery Time : 5-8 Workdays
Supply Ability : 5000PCS Per Month
Model NO. : PF-MO014A
Support Network : All
Information content : All
Condition : New
Frequency : 5100-5900MHz/Customized
Power Supply : 100W/Customized
Saturated Output Power : 47±1dBm @Input=3~5dBm
Vswr : 1.5dBi
Supply Current : 8-10A
Working Voltage : DC+32V
Temperature Protection(Warn) : Temperature Protection 90 Degrees(See Pin8)
Weightvswr Vswr Protection(Warn) : Reverse Power 15W Protection
Weight : 350g
Dimensions : 77*180.6*24.5mm
High Light : Fpv Equipment RF Power Amplifier Module, 50W RF Po
Transport Package : Carton
Specification : 170*77*24mm
Trademark : PADIFLY/OEM
Origin : China
Package Size : 30.00cm * 20.00cm * 10.00cm
Package Gross Weight : 0.500kg
Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.
Frequency | 5100-5900mhz |
Power supply | 100W |
Saturated output power | 50±1dBm @input=5dbm |
Gain | 50±2dB |
In-band fluctuation | ≤2.0dB |
Out-of-band spurious | 9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz |
Input VSWR/Out VSWR | ≤2 |
Gain temperature stability | ≤±1.5dB |
Working voltage | DC+32V |
Protection | Temperature protection 90 degrees,Reverse Power 30W protection |
Working current | ≤10.5A |
Power supply monitoring interface | Power supply: Perform capacitive Pin1:485A Pin2:NC Pin3: GND Pin4: NC Pin5: PA_EN(High power on, Low level off) Pin6: NC Pin7: NC Pin8: 485B |
Iinput RF port | SMA |
Output RF port | N-F |
Dimensions | 77*180.6*24.5mm |
Working temperature | -20~+55ºC |
Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.
Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.
![]() |

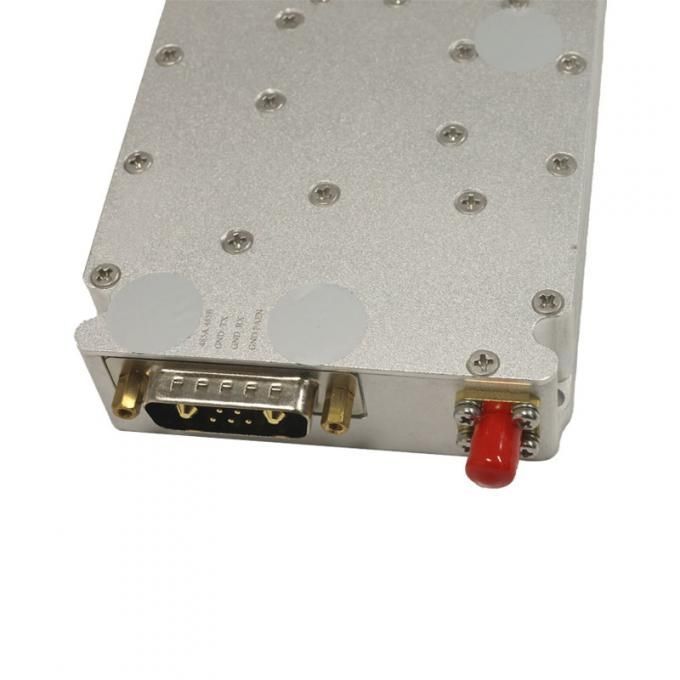

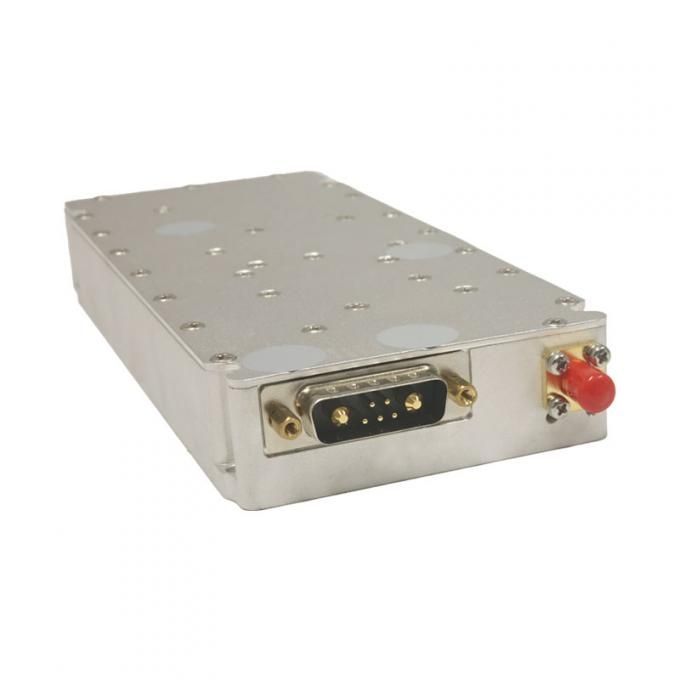

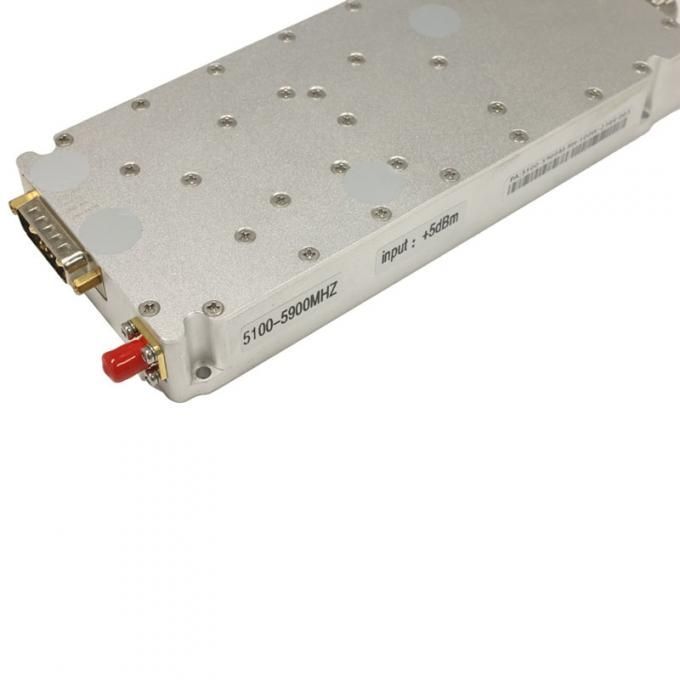

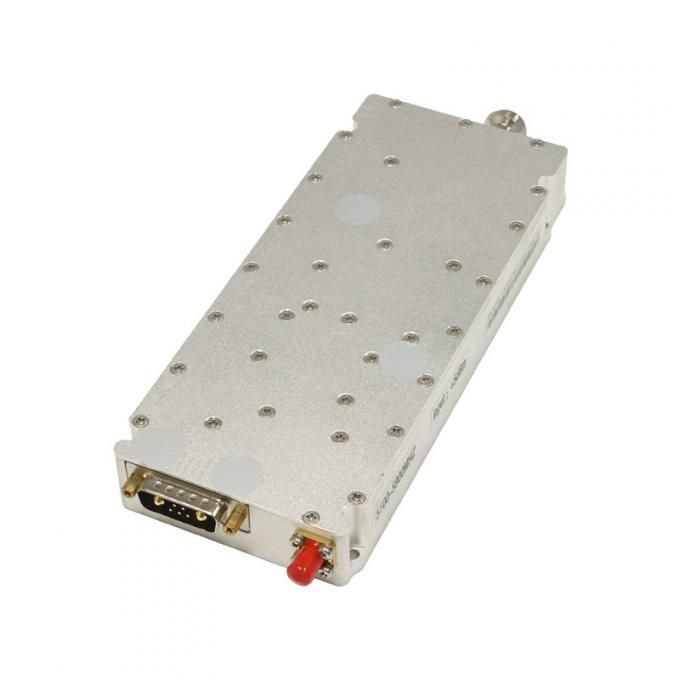

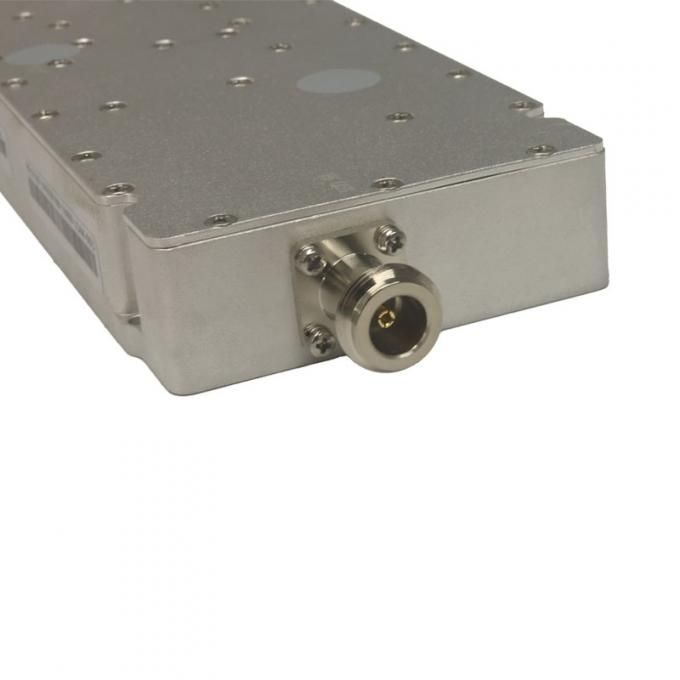

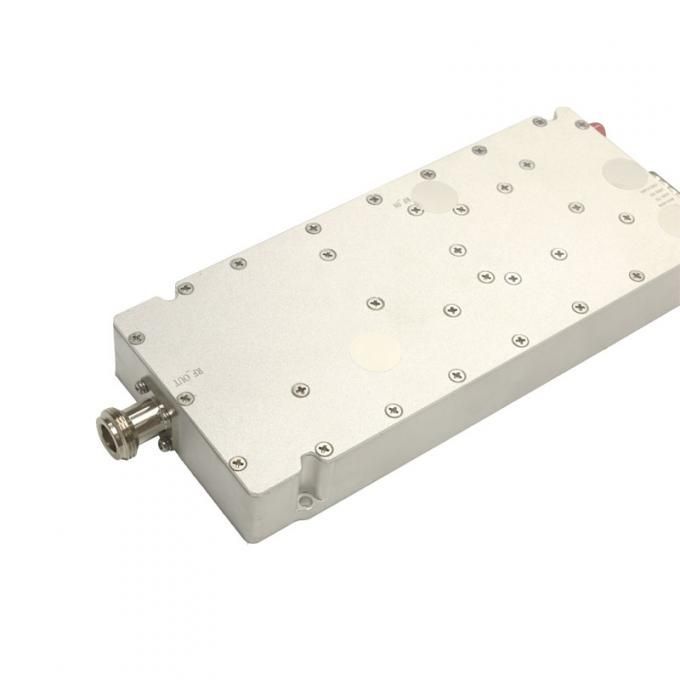

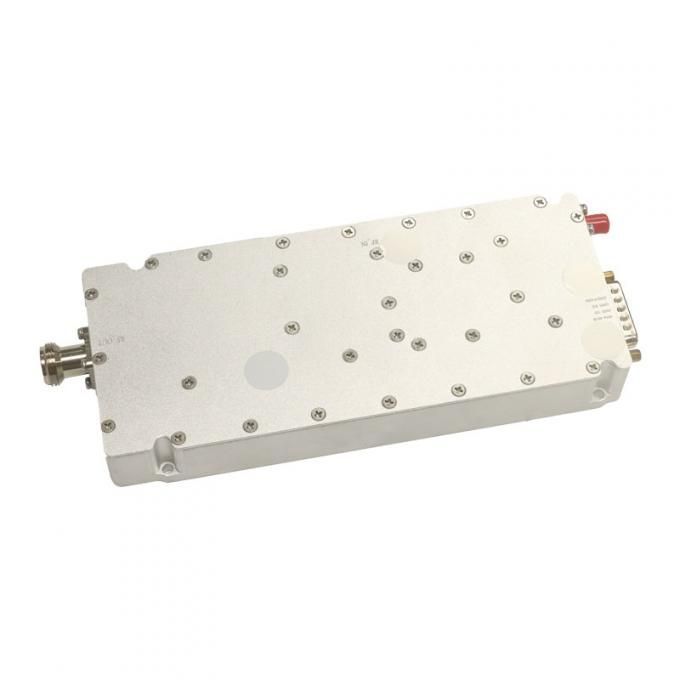

100W RF Power Amplifier Module for Anti Drone System Images |
